不鏽鋼隱藏式電線鉸鏈與鎖
New Stainless Steel Concealed Electric Wires Hinges and Lock
12芯鐵氟龍線材 AWG 28 符合 UL-10362 規範
可與任何門禁系統或電子鎖整合，提升門禁安全等級
12 Teflon Wires AWG 28 as per UL-10362 Spec.
It can be integrated with any access control system or electronic lock available in the market, increasing the security level of the access control.

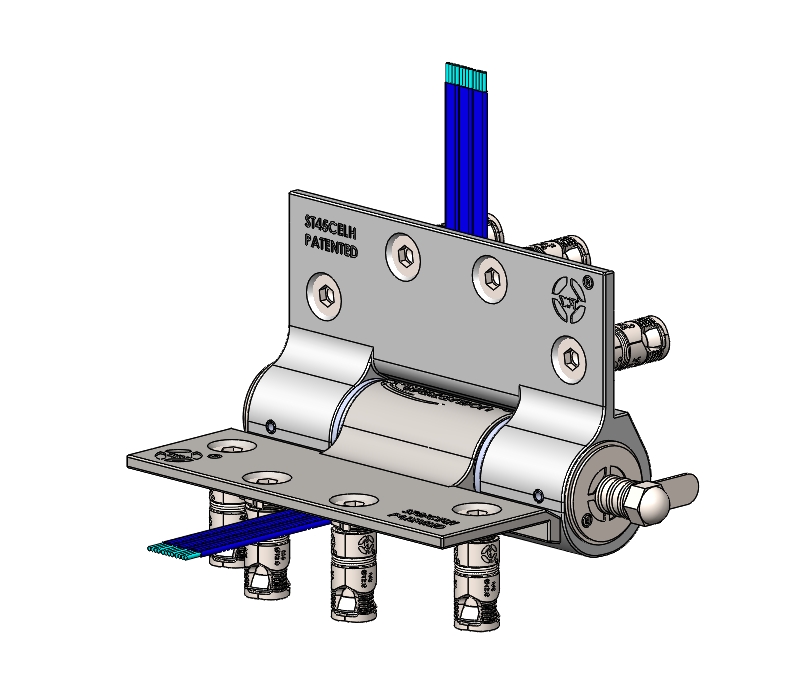

ST45MCELH

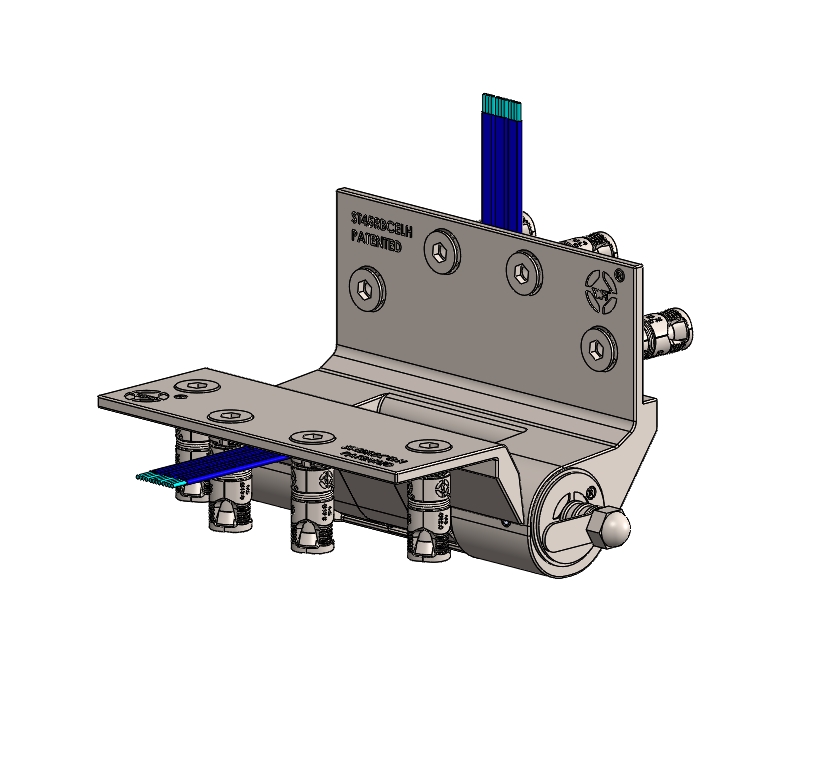

ST45RBMCELH
ST45KCELH
線材優勢 / Cable Advantages：
耐高溫250℃ High Temperature Resistant
高耐壓600V High Voltage Resistant
UL認證標準 UL Certified
12芯多功能 12-Core Multi-function
透明外被 Transparent Jacket
12色識別 12-Color Identification
鐵氟龍材質 Teflon Material
基本規格：
- 標準：UL-10362
- 線規：28AWG x 12芯排線
- 導體：鍍鎳銅 (7/0.127mm)
- 絕緣材質：PFA (厚度0.25mm)
- 外被材質：FEP透明色
- 線芯顏色：12色區分識別
Cable Specification：
- Standard: UL-10362
- Wire Gauge: 28AWG x 12 Cores Flat Cable
- Conductor: Nickel plated copper (7/0.127mm)
- Insulation: PFA (Thickness 0.25mm)
- Jacket: FEP Transparent color
- Wire Colors: 12 colors identification
特性：
- 額定溫度：250℃ (導體) / 200℃ (外被)
- 額定電壓：600V (導體) / 300V (外被)
- 火花試驗：6kV/0.15sec (導體)
- 線材尺寸：1.55mm±0.05 x 11.5mm±0.5mm
- 符合UL-758 & 1581規範
Characteristics：
- Rated Temperature: 250℃ (Conductor) / 200℃ (Jacket)
- Rated Voltage: 600V (Conductor) / 300V (Jacket)
- Spark Test: 6kV/0.15sec (Conductor)
- Cable Size: 1.55mm±0.05 x 11.5mm±0.5mm
- Complies with UL-758 & 1581 Standards
