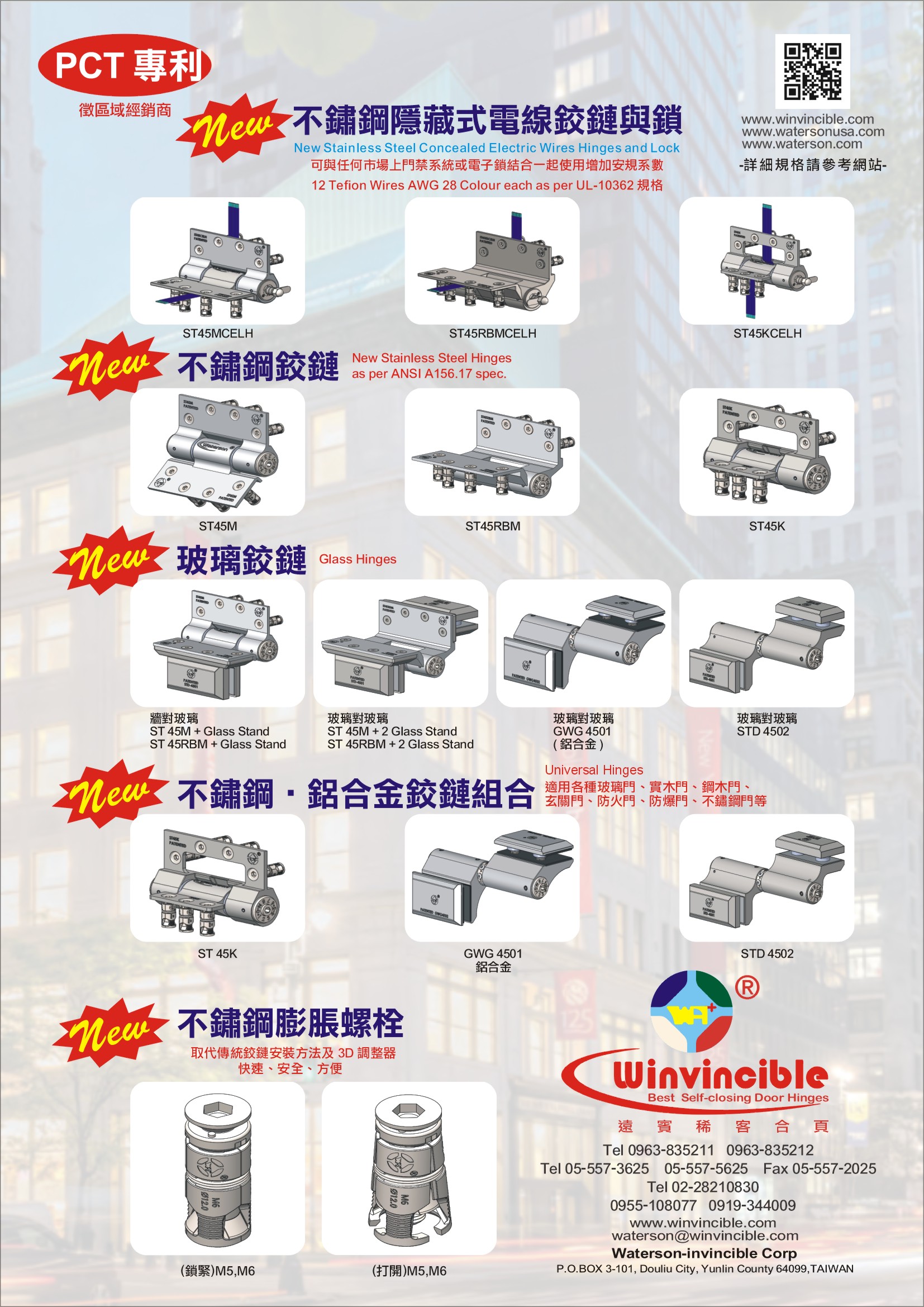

產品型錄與展覽資訊
Product Catalog & Exhibition Information

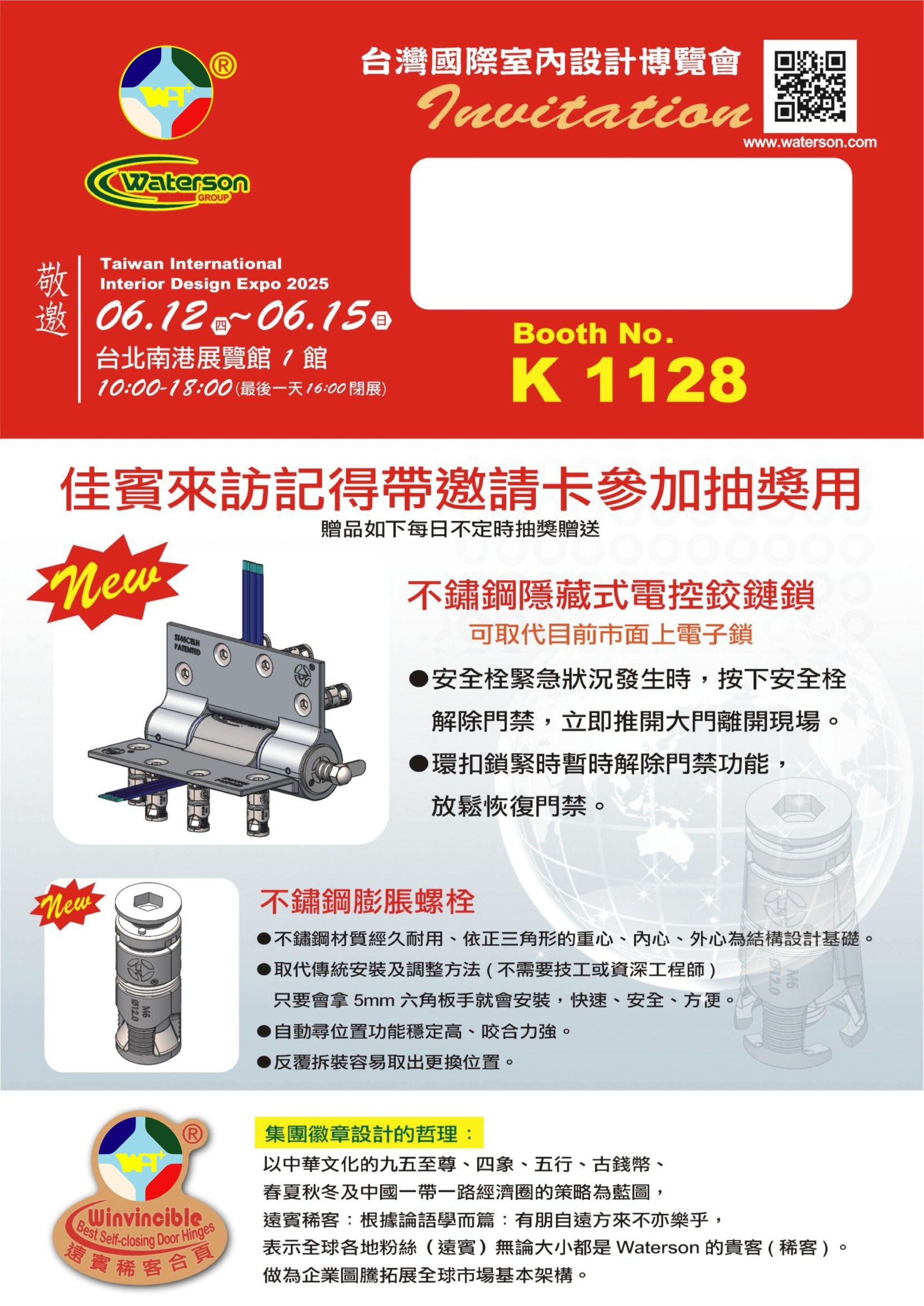

2025台灣室內設計博覽會
06.12-06.15 展位 K1128

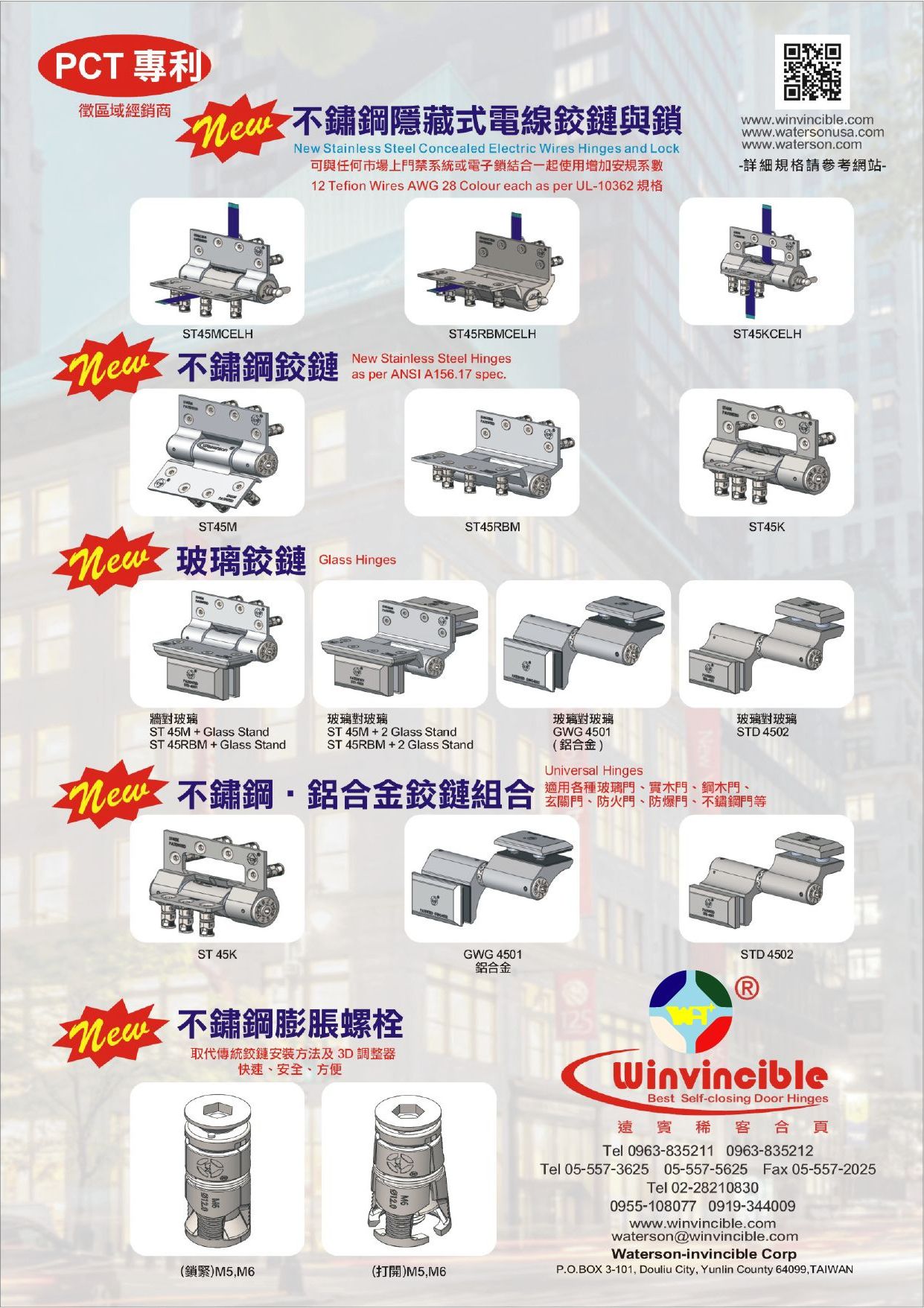

完整產品系列型錄
專利技術特色
技術優勢亮點
Technical Advantages
專利認證
ANSI標準
安裝簡易
三角結構
12芯線材
全球經銷
Best Self-closing Door Hinges
產品展示
Product Showcase
展示新舊設計鉸鏈產品對比
Showcase comparison between new and old designed Hinge products
新設計鉸鏈 符合ANSI A156.17規範
New Designed Hinges as per ANSI A156.17 Spec.

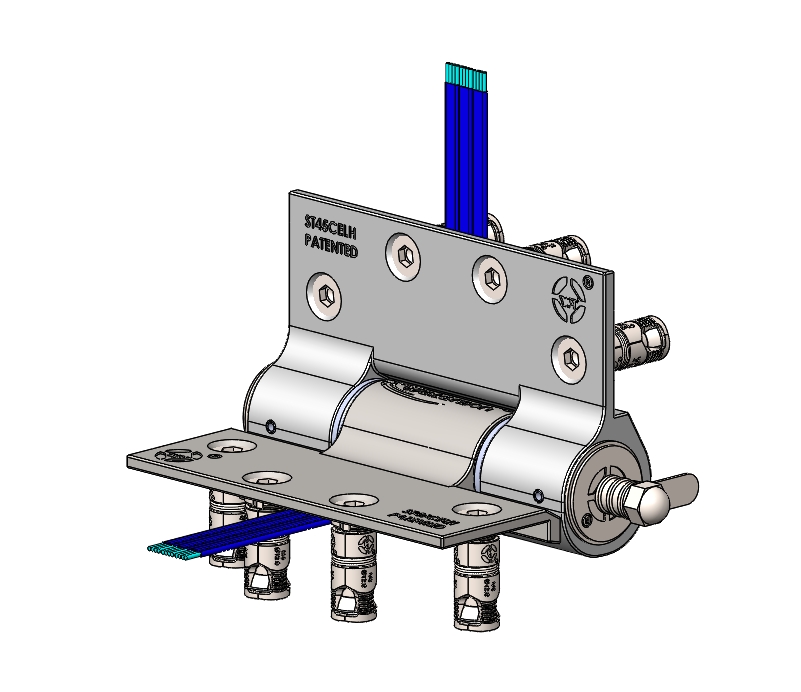

Stainless Steel Concealed Electric Wires Hinges and Lock 0° - New designed with 12 teflon wires UL-10362
Stainless Steel Concealed Electric Wires Hinges and Lock 90° - New designed with 12 teflon wires UL-10362
Stainless Steel Concealed Electric Wires Hinges and Lock K-Series 0° - New designed with 12 teflon wires UL-10362
Stainless Steel Full Mortise Template Hinges M-Series 0° - New designed ANSI A156.17 Grade 1
Stainless Steel Full Mortise Template Hinges RBM-Series 0° - New designed ANSI A156.17 Grade 1
New Patented Stainless Steel Expansion Anchor M5 - Triangle structure design

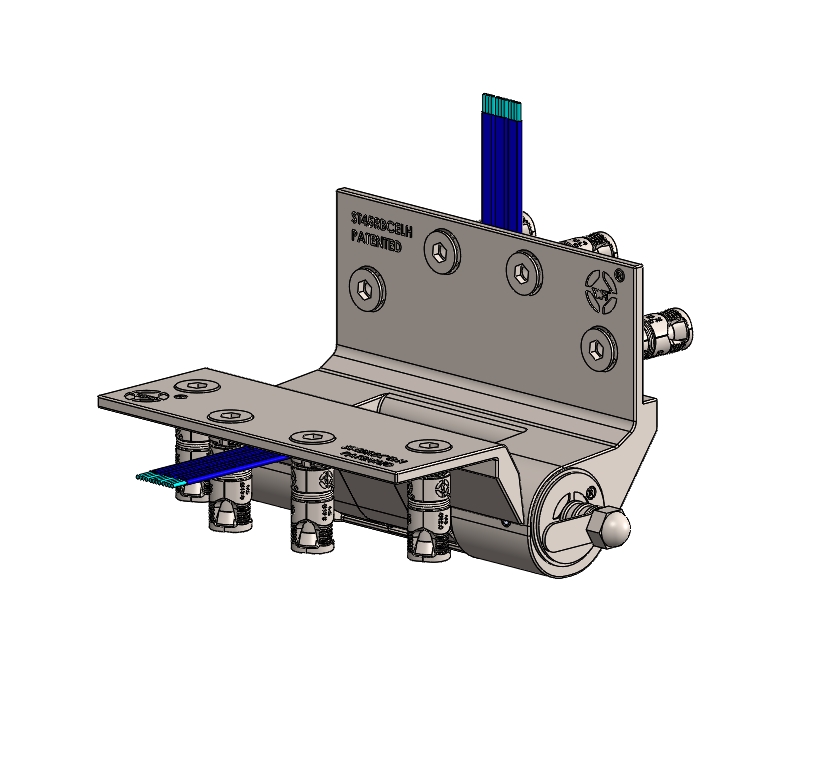

Stainless Steel Concealed Electric Wires Hinges and Lock 90°
New designed with 12 teflon wires UL-10362
傳統設計鉸鏈
Old Designed Hinges as per ANSI A156.17 Grade 1
NEW

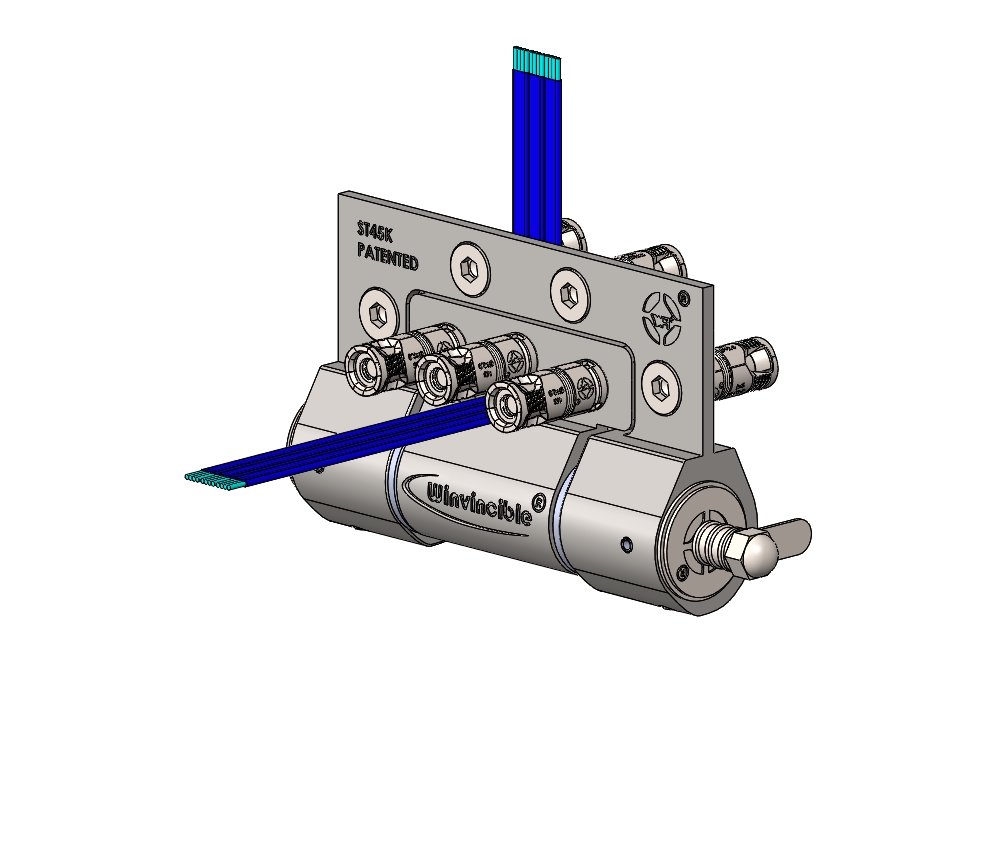

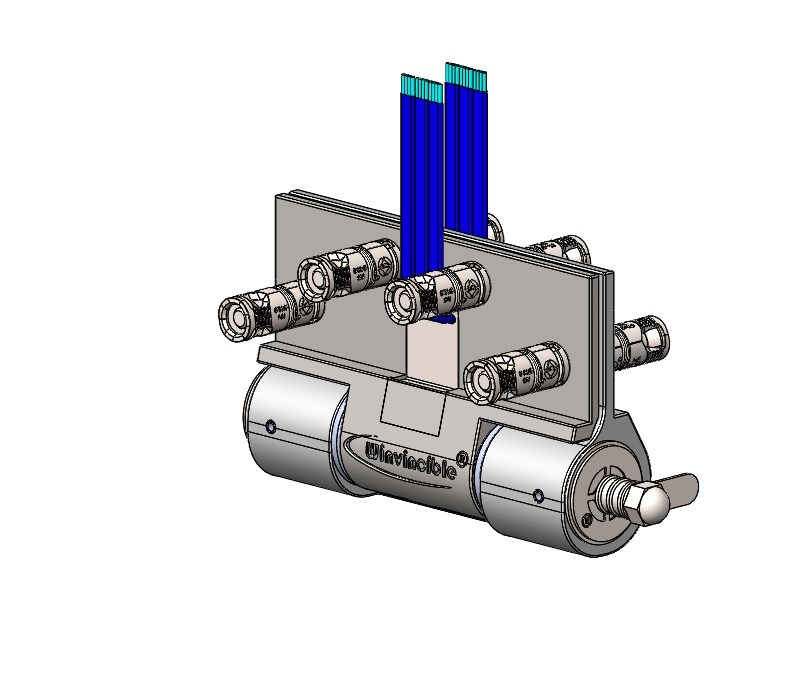

不鏽鋼隱藏式電線鉸鏈與鎖
New Stainless Steel Concealed Electric Wires Hinges and Lock
12芯鐵氟龍線材 AWG 28 符合 UL-10362 規範
可與任何門禁系統或電子鎖整合，提升門禁安全等級
12 Teflon Wires AWG 28 as per UL-10362 Spec.
It can be integrated with any access control system or electronic lock available in the market, increasing the security level of the access control.
ST45MCELH
ST45RBMCELH
ST45KCELH
線材優勢 / Cable Advantages：
耐高溫250℃ High Temperature Resistant
高耐壓600V High Voltage Resistant
UL認證標準 UL Certified
12芯多功能 12-Core Multi-function
透明外被 Transparent Jacket
12色識別 12-Color Identification
鐵氟龍材質 Teflon Material
基本規格：
- 標準：UL-10362
- 線規：28AWG x 12芯排線
- 導體：鍍鎳銅 (7/0.127mm)
- 絕緣材質：PFA (厚度0.25mm)
- 外被材質：FEP透明色
- 線芯顏色：12色區分識別
Cable Specification：
- Standard: UL-10362
- Wire Gauge: 28AWG x 12 Cores Flat Cable
- Conductor: Nickel plated copper (7/0.127mm)
- Insulation: PFA (Thickness 0.25mm)
- Jacket: FEP Transparent color
- Wire Colors: 12 colors identification
特性：
- 額定溫度：250℃ (導體) / 200℃ (外被)
- 額定電壓：600V (導體) / 300V (外被)
- 火花試驗：6kV/0.15sec (導體)
- 線材尺寸：1.55mm±0.05 x 11.5mm±0.5mm
- 符合UL-758 & 1581規範
Characteristics：
- Rated Temperature: 250℃ (Conductor) / 200℃ (Jacket)
- Rated Voltage: 600V (Conductor) / 300V (Jacket)
- Spark Test: 6kV/0.15sec (Conductor)
- Cable Size: 1.55mm±0.05 x 11.5mm±0.5mm
- Complies with UL-758 & 1581 Standards
NEW

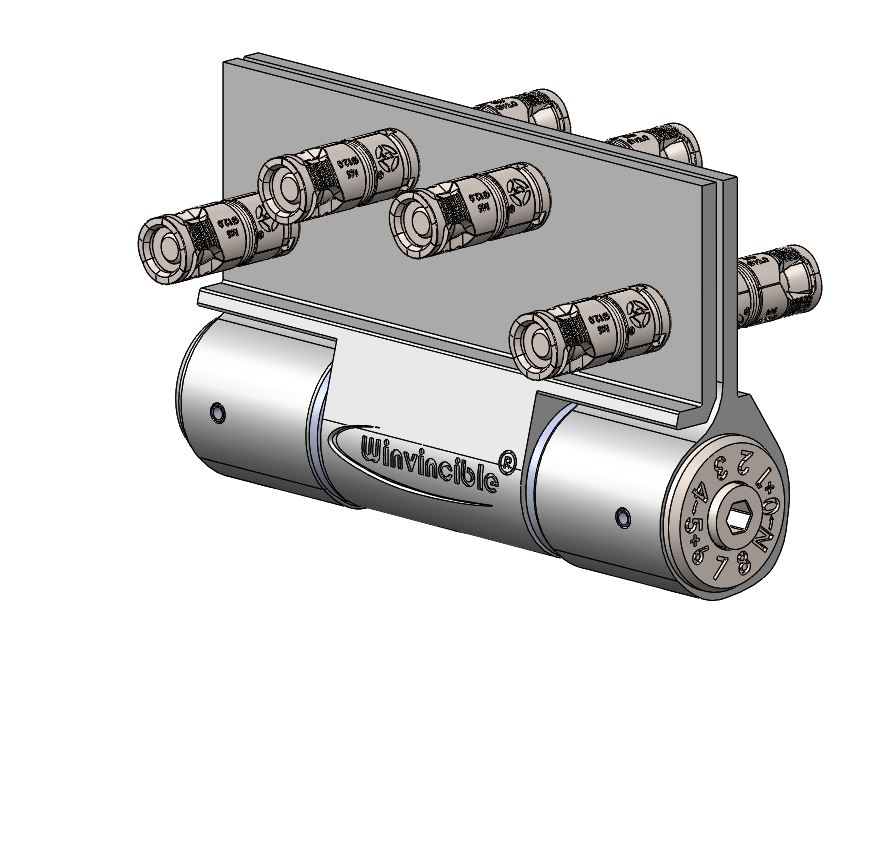

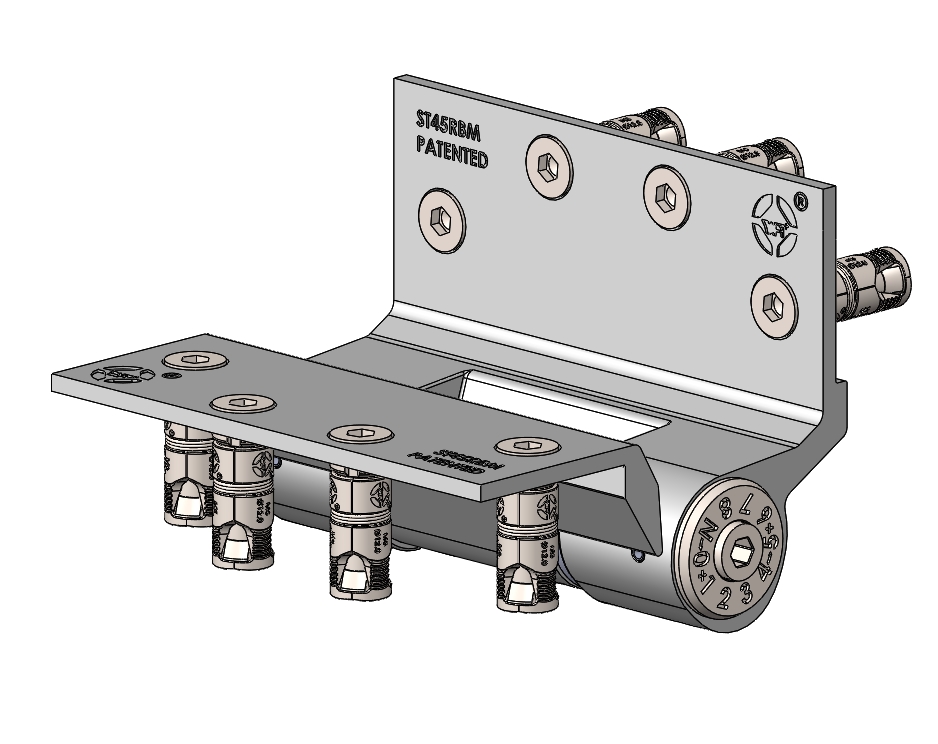

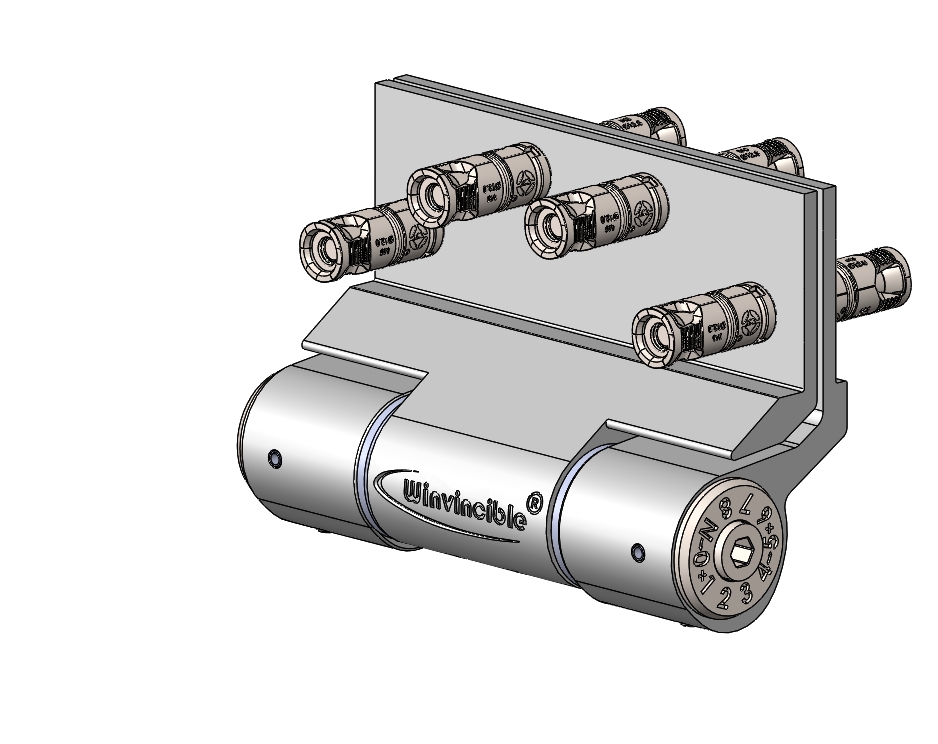

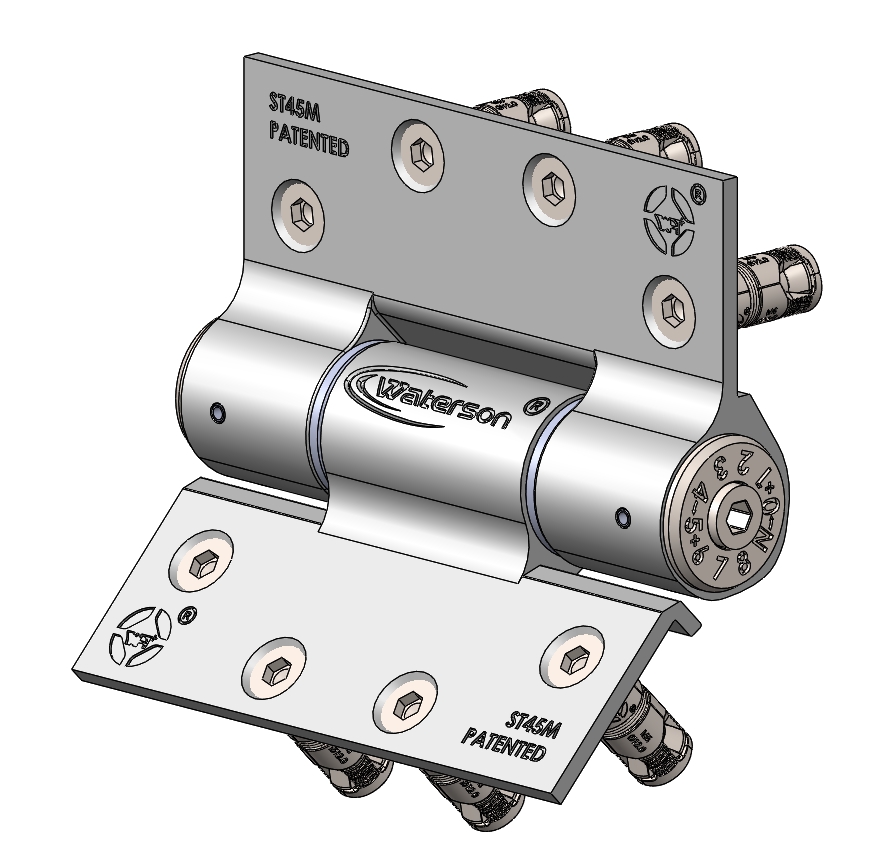

不鏽鋼鉸鏈
Stainless Steel Full Mortise Template Hinges
as per ANSI A156.17 Spec.
are Suitable for Various Door Types:
Frame Glass Doors
Solid Wood Doors Steel-Wood Doors
Entrance Doors
Fire Doors
Anti-Violent Doors
Stainless Steel Doors
ST45M
ST45RBM
ST45K
適用門種 / Suitable for Various Door Types：
玻璃門 Glass Doors
實木門 Solid Wood Doors
鋼木門 Steel-Wood Doors
玄關門 Entrance Doors
防火門 Fire Doors
防爆門 Anti-Violent Doors
不鏽鋼門 Stainless Steel Doors
特點：
- 整合優化市場上傳統的不鏽鋼天地鉸鏈、門弓器、油壓地鉸鏈、3D調整器等，促使安裝簡捷快速安全,容易調整及設定
- 採用專利Expansion Anchor 獨特結構設計取代傳統安裝方法
- 只要會拿3mm及5mm六角板手都會安裝(不需要專業工程師或技術人員)
- 可調式關門角度 0度,90度,135度等
- 發明專利機械與油壓緩衝裝置混合式結構
Features：
- Integrate and optimize traditional door hinges in the market, such as stainless steel pivot hinges, door closers, hydraulic floor hinges, and 3D adjusters, to facilitate quick, safe, and easy installation as well as adjustments and settings
- It uses a patented Expansion Anchor with a unique structural design that replaces traditional installation methods
- Anyone who can use a 3mm or 5mm hex wrench can install it (there's no need for professional engineers or technicians)
- Adjustable closing angles: 0 degrees, 90 degrees, 135 degrees, etc
- A patented invention featuring a mixed structure of mechanical and hydraulic damping devices
NEW

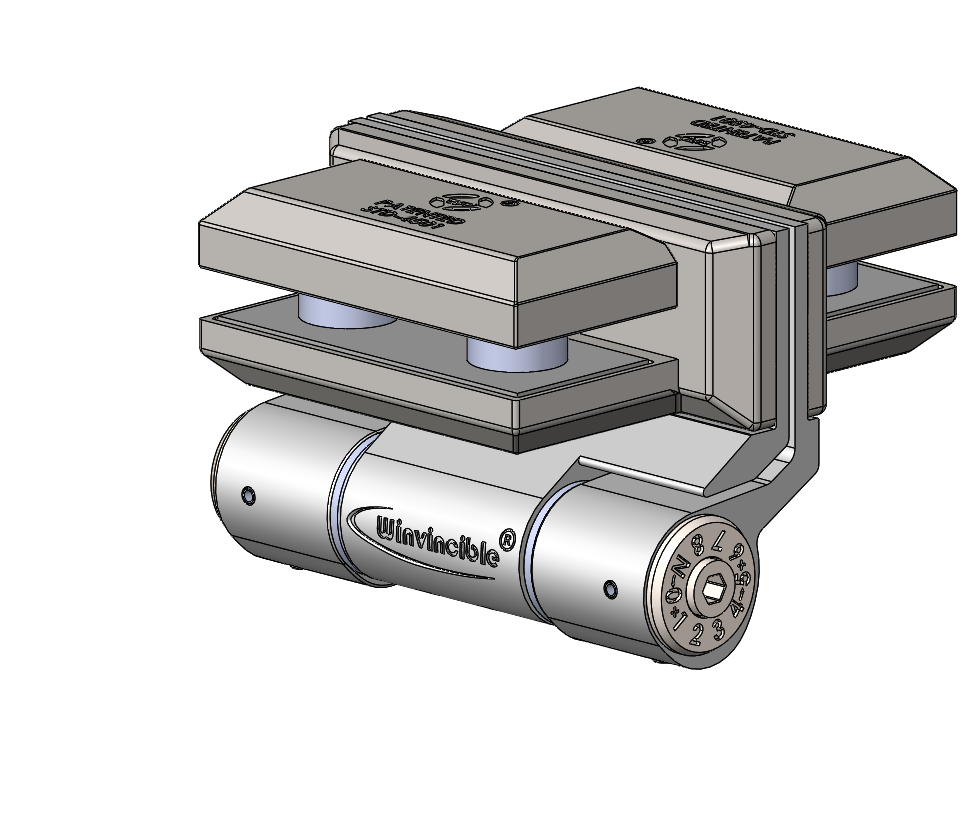

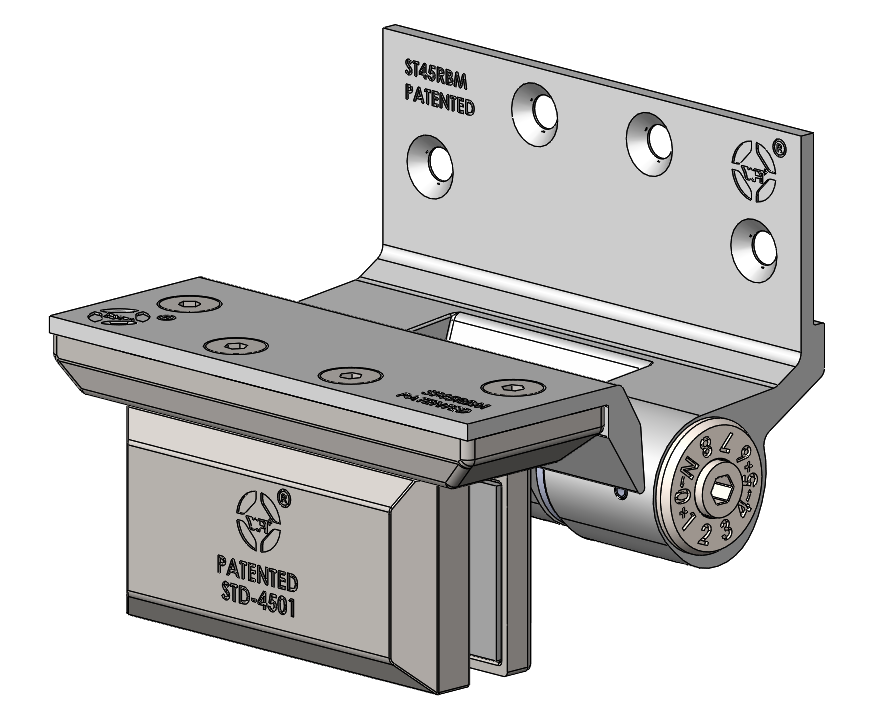

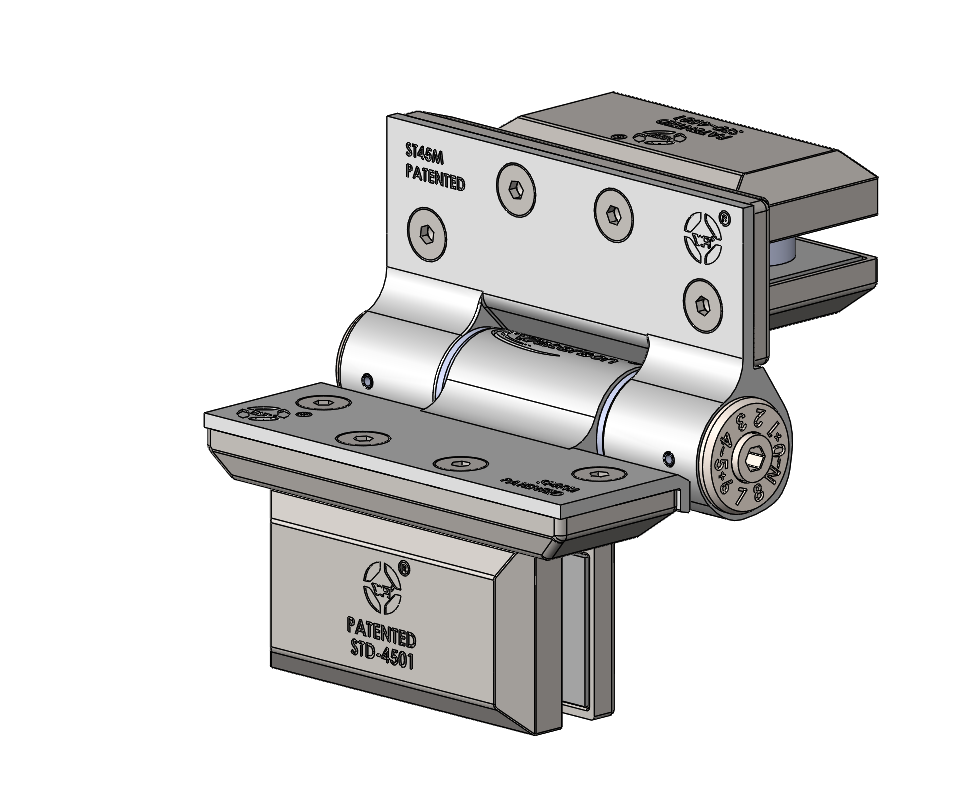

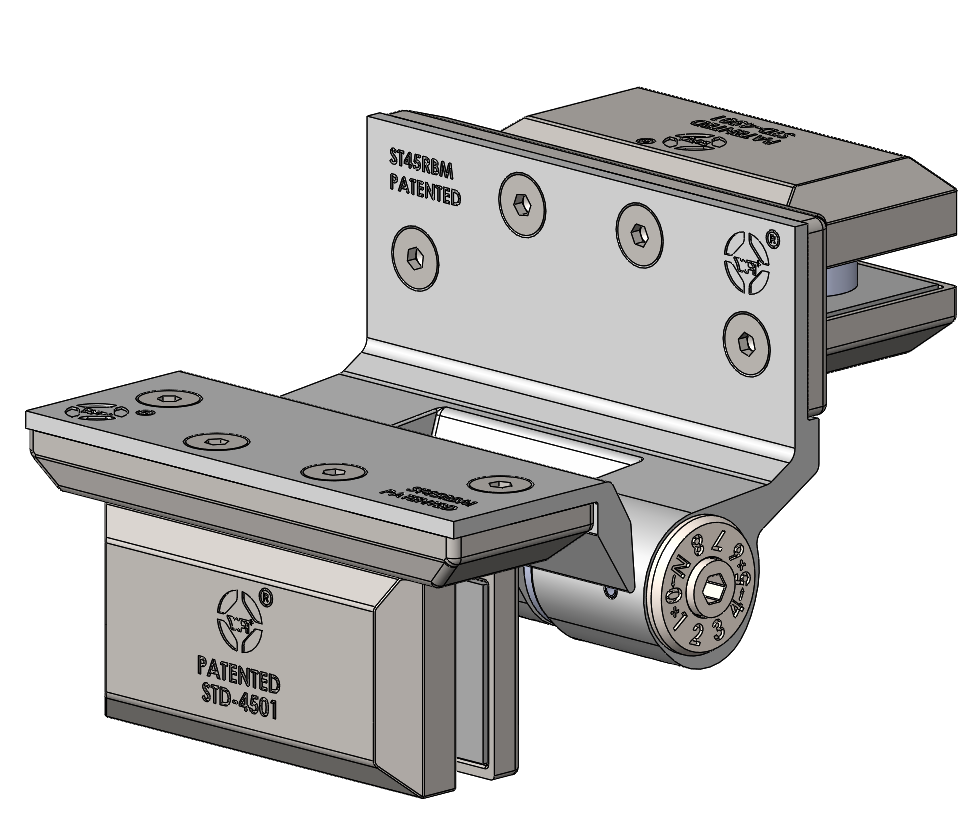

玻璃鉸鏈
Wall to Glass Hinges / Glass to Glass Hinges

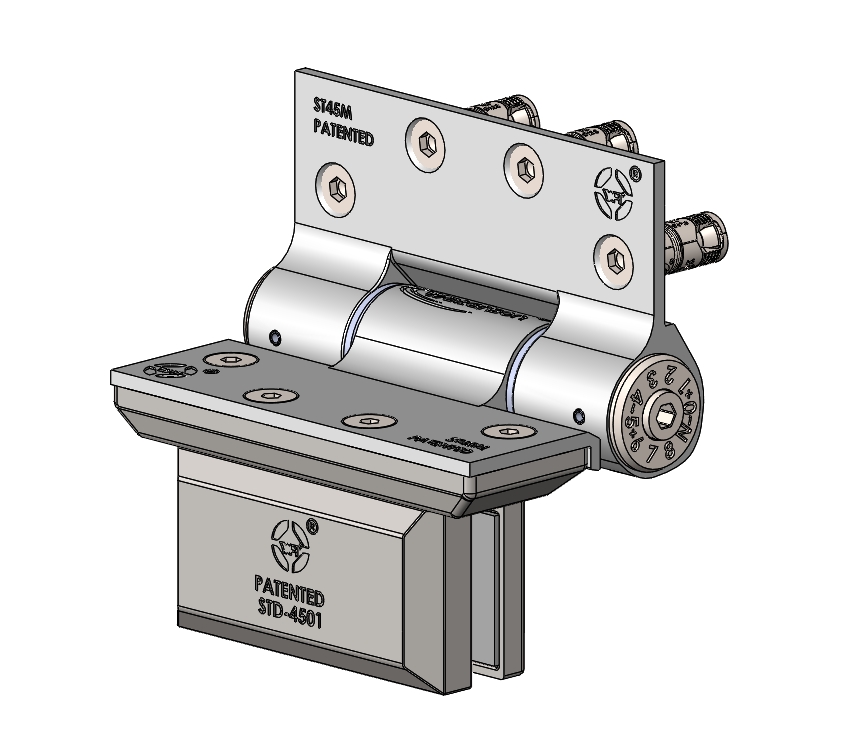

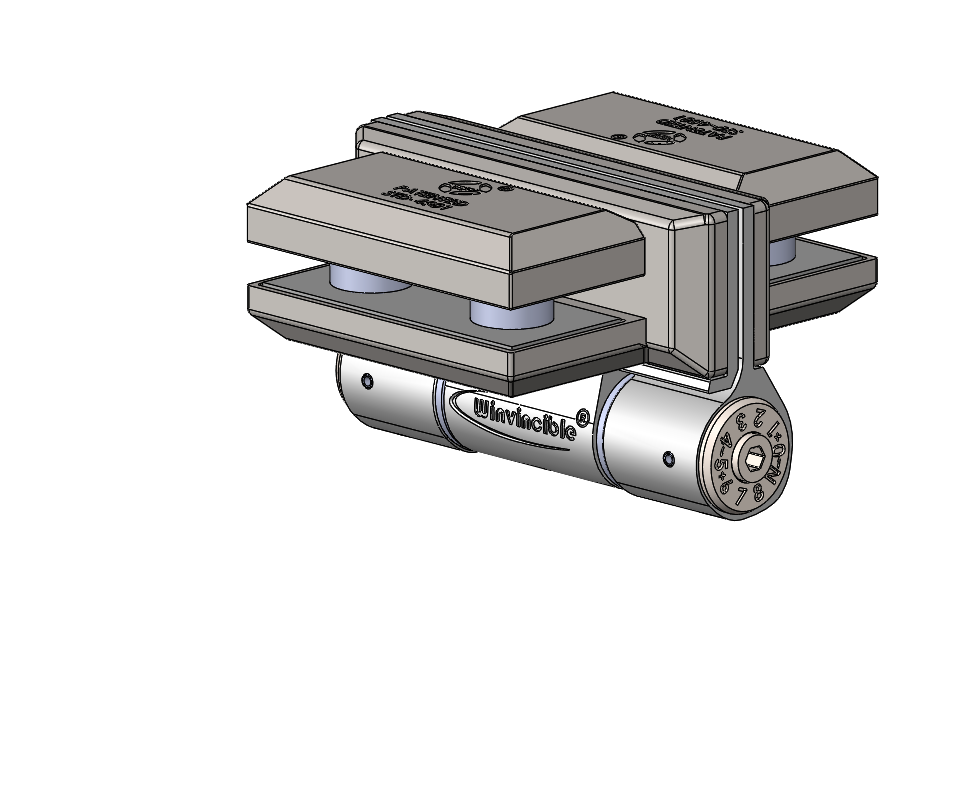

ST45RBM+ Glass Stand, ST45M + Glass Stand and Glass to Glass Hinges GWG4501 STD4502
適用門種 / Suitable for Various Door Types：
玻璃門 Glass Doors
實木門 Solid Wood Doors
鋼木門 Steel-Wood Doors
玄關門 Entrance Doors
防火門 Fire Doors
防爆門 Anti-Violent Doors
不鏽鋼門 Stainless Steel Doors
特點：
- 整合優化市場上傳統的不鏽鋼天地鉸鏈、門弓器、油壓地鉸鏈、3D調整器等，促使安裝簡捷快速安全,容易調整及設定
- 採用專利Expansion Anchor 獨特結構設計取代傳統安裝方法
- 只要會拿3mm及5mm六角板手都會安裝(不需要專業工程師或技術人員)
- 可調式關門角度 0度,90度,135度等
- 發明專利機械與油壓緩衝裝置混合式結構
Features：
- Integrate and optimize traditional door hinges in the market, such as stainless steel pivot hinges, door closers, hydraulic floor hinges, and 3D adjusters, to facilitate quick, safe, and easy installation as well as adjustments and settings
- It uses a patented Expansion Anchor with a unique structural design that replaces traditional installation methods
- Anyone who can use a 3mm or 5mm hex wrench can install it (there's no need for professional engineers or technicians)
- Adjustable closing angles: 0 degrees, 90 degrees, 135 degrees, etc
- A patented invention featuring a mixed structure of mechanical and hydraulic damping devices
NEW
不鏽鋼、鋁合金鉸鏈組合
Stainless Steel Hinges and Aluminum Alloy Hinges Combination -Universal-
此系列僅提供給客戶參考使用，尤其在門框及門扇沒有規範之下時，使用ST45K只要門框與門扇的間隙大於3.50mm，在門框與門扇側側邊直接鑽孔適合鉸鏈葉片的螺絲孔位置，配合襯套、膨脹螺栓，安裝非常方便請參考網站。
鋁合金鉸鏈 GWG 4501、不鏽鋼鉸鏈 STD4502 都是相同規格只是材質不一樣，通常使用時，在門扇正面鑽孔（不使用側邊而是正面門扇）配合膨脹螺栓、襯套組合安裝方便快速安全，細節請參網站的3D組裝方法。
These Series is Provided for Customer Reference Only. Especially When There Are No Specification for The Door Frame and Door to Use ST45K, As Long As The Gap Between The Door Frame And Door is Greater Than 3.50mm, You Can Drill Holes Directly on the side edges of the door frame and door leaf at positions suitable for hinge Template screw holes. Using Sleeve and expansion Anchor installation is very convenient. Please refer to the website for details.
Aluminum Alloy Hinge GWG 4501 and Stainless Steel Hinge STD4502 Both have the same specifications but different materials. Typically, during use, holes are drilled on the front of the door leaf (not on the side, but the front of the door leaf), and combined with expansion bolts and bushings for convenient, quick, and secure installation. For details, please refer to the 3D assembly instructions on the website.
適用門種 / Suitable for Various Door Types：
玻璃門 Glass Doors
實木門 Solid Wood Doors
鋼木門 Steel-Wood Doors
玄關門 Entrance Doors
防火門 Fire Doors
防爆門 Anti-Violent Doors
不鏽鋼門 Stainless Steel Doors
特點：
- 符合ANSI A156.17規範標準，品質保證可靠
- 特殊設計可混合組合使用，提供多元化解決方案
- ST45K系列支援電線隱藏功能，整合門禁系統
- GWG4501專為玻璃對玻璃應用設計，美觀實用
- STD4502適用重型門扇，承重能力強
- 不鏽鋼材質經久耐用，抗腐蝕性能優異
Features：
- Complies with ANSI A156.17 standards, ensuring reliable quality assurance
- Special design allows mixed combination use, providing diversified solutions
- ST45K series supports concealed electric wire function, integrating access control systems
- GWG4501 specially designed for glass-to-glass applications, both aesthetic and practical
- STD4502 suitable for heavy-duty door panels with strong load-bearing capacity
- Made of durable stainless steel with excellent corrosion resistance
NEW

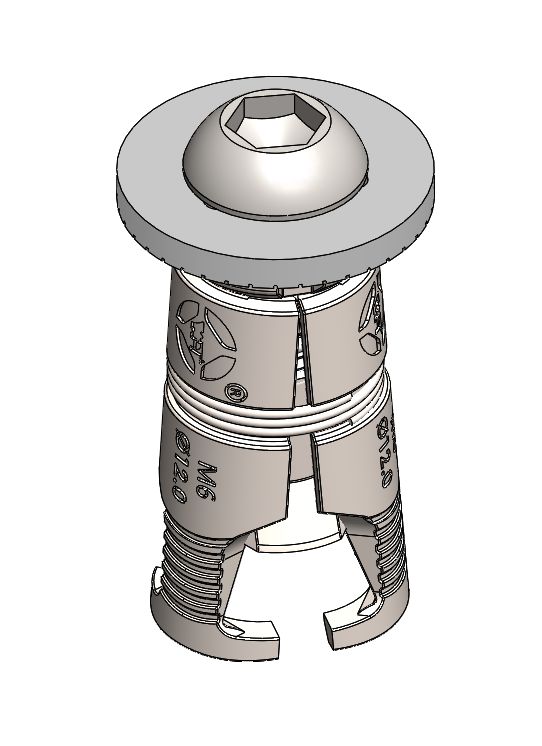

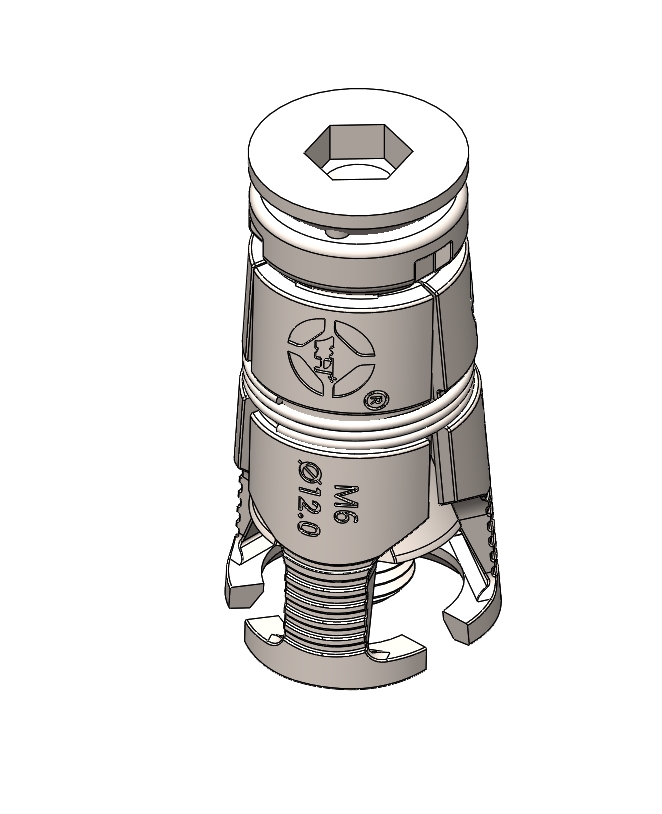

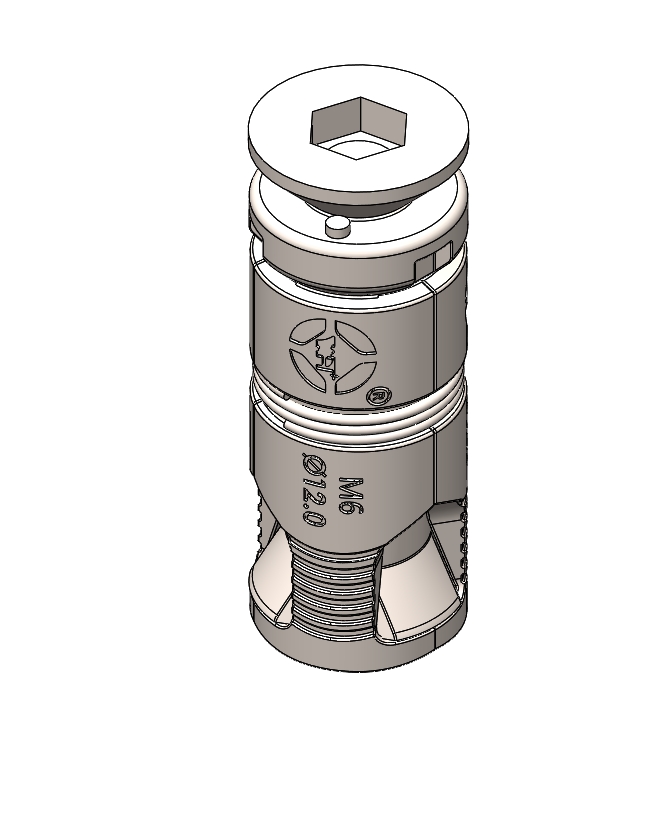

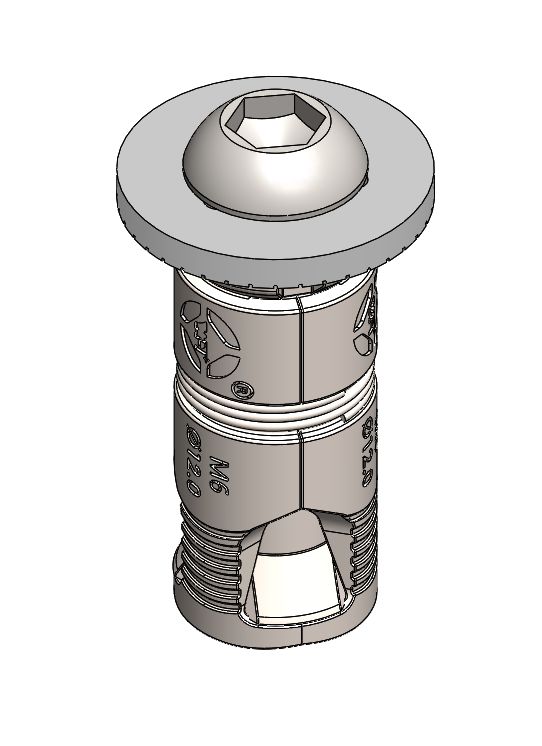

發明專利不鏽鋼膨脹螺栓
New Patented Stainless Steel Expansion Anchor
Made of durable stainless steel, designed based on the centroid, incenter, and circumcenter of an equilateral triangle structure. Replaces traditional installation and adjustment methods.
不鏽鋼膨脹螺栓 (鎖緊)
不鏽鋼膨脹螺栓 (打開)

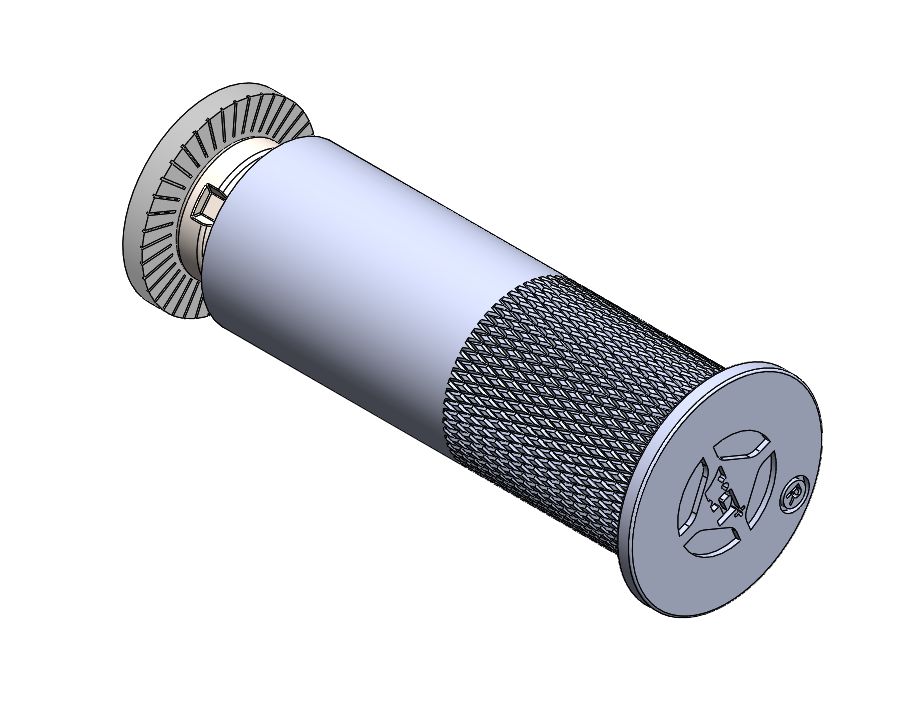

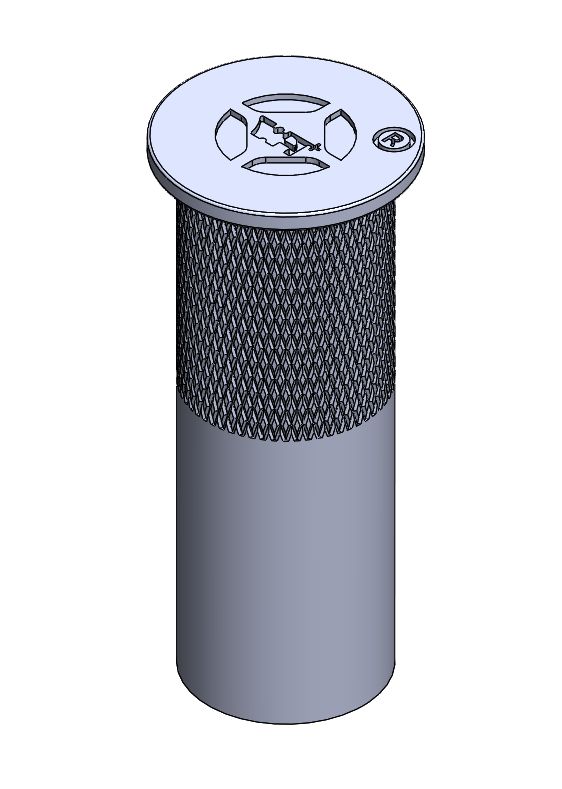

泛用型膨脹螺栓
Universal Expansion Anchor
特點：
- 不鏽鋼材質經久耐用、依正三角形的重心、內心、外心為結構設計基礎
- 取代傳統安裝及調整方法(不需要專業技工或資深工程師)
- 只要會使用5mm六角板手就會安裝,快速安全方便
- 自動尋位功能穩定高、咬合力強
- 反覆拆裝容易取出更換位置
Features：
- Made of durable stainless steel, designed based on the centroid, incenter, and circumcenter of an equilateral triangle structure
- Replaces traditional installation and adjustment methods (no need for professional technicians or senior engineers)
- Anyone who can use a 5mm hex wrench can install it quickly, safely, and conveniently
- Features a stable automatic positioning function with strong gripping force
- Easy to repeatedly disassemble and reassemble, allowing for easy removal and repositioning
