不鏽鋼、鋁合金鉸鏈組合
Stainless Steel Hinges and Aluminum Alloy Hinges Combination -Universal-

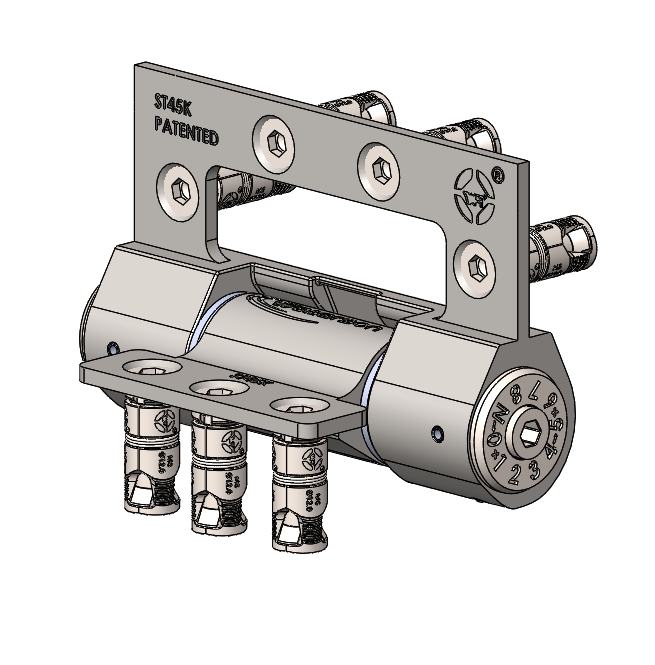

此系列僅提供給客戶參考使用，尤其在門框及門扇沒有規範之下時，使用ST45K只要門框與門扇的間隙大於3.50mm，在門框與門扇側側邊直接鑽孔適合鉸鏈葉片的螺絲孔位置，配合襯套、膨脹螺栓，安裝非常方便請參考網站。
鋁合金鉸鏈 GWG 4501、不鏽鋼鉸鏈 STD4502 都是相同規格只是材質不一樣，通常使用時，在門扇正面鑽孔（不使用側邊而是正面門扇）配合膨脹螺栓、襯套組合安裝方便快速安全，細節請參網站的3D組裝方法。
These Series is Provided for Customer Reference Only. Especially When There Are No Specification for The Door Frame and Door to Use ST45K, As Long As The Gap Between The Door Frame And Door is Greater Than 3.50mm, You Can Drill Holes Directly on the side edges of the door frame and door leaf at positions suitable for hinge Template screw holes. Using Sleeve and expansion Anchor installation is very convenient. Please refer to the website for details.

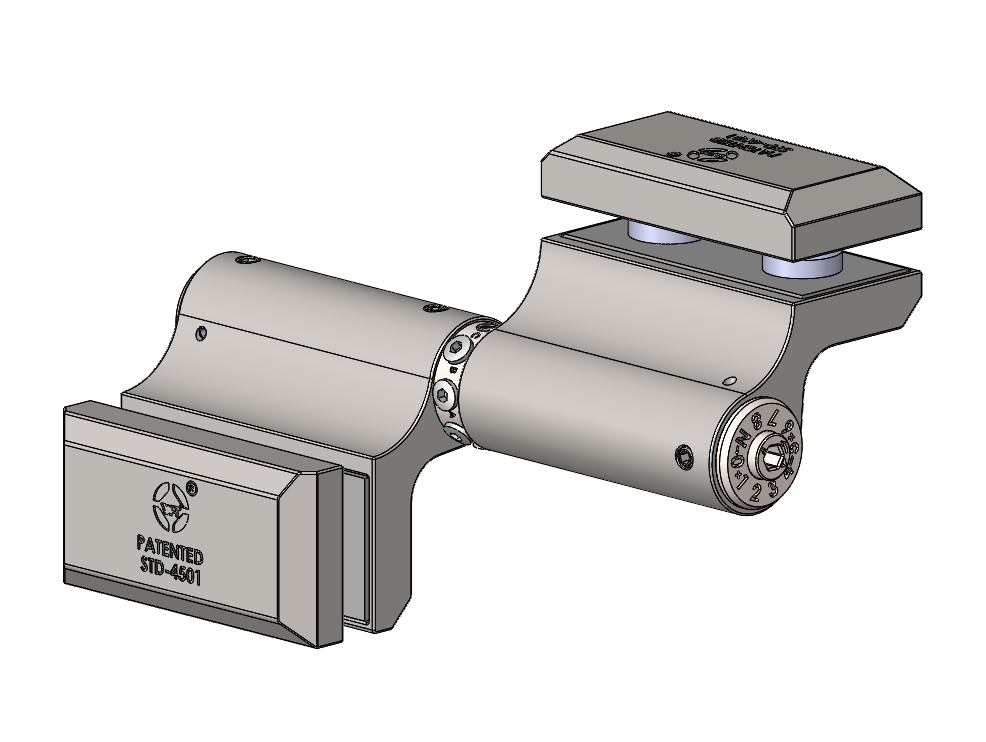

Aluminum Alloy Hinge GWG 4501 and Stainless Steel Hinge STD4502 Both have the same specifications but different materials. Typically, during use, holes are drilled on the front of the door leaf (not on the side, but the front of the door leaf), and combined with expansion bolts and bushings for convenient, quick, and secure installation. For details, please refer to the 3D assembly instructions on the website.
適用門種 / Suitable for Various Door Types：
玻璃門 Glass Doors
實木門 Solid Wood Doors
鋼木門 Steel-Wood Doors
玄關門 Entrance Doors
防火門 Fire Doors
防爆門 Anti-Violent Doors
不鏽鋼門 Stainless Steel Doors
特點：
- 符合ANSI A156.17規範標準，品質保證可靠
- 特殊設計可混合組合使用，提供多元化解決方案
- ST45K系列支援電線隱藏功能，整合門禁系統
- GWG4501專為玻璃對玻璃應用設計，美觀實用
- STD4502適用重型門扇，承重能力強
- 不鏽鋼材質經久耐用，抗腐蝕性能優異
Features：
- Complies with ANSI A156.17 standards, ensuring reliable quality assurance
- Special design allows mixed combination use, providing diversified solutions

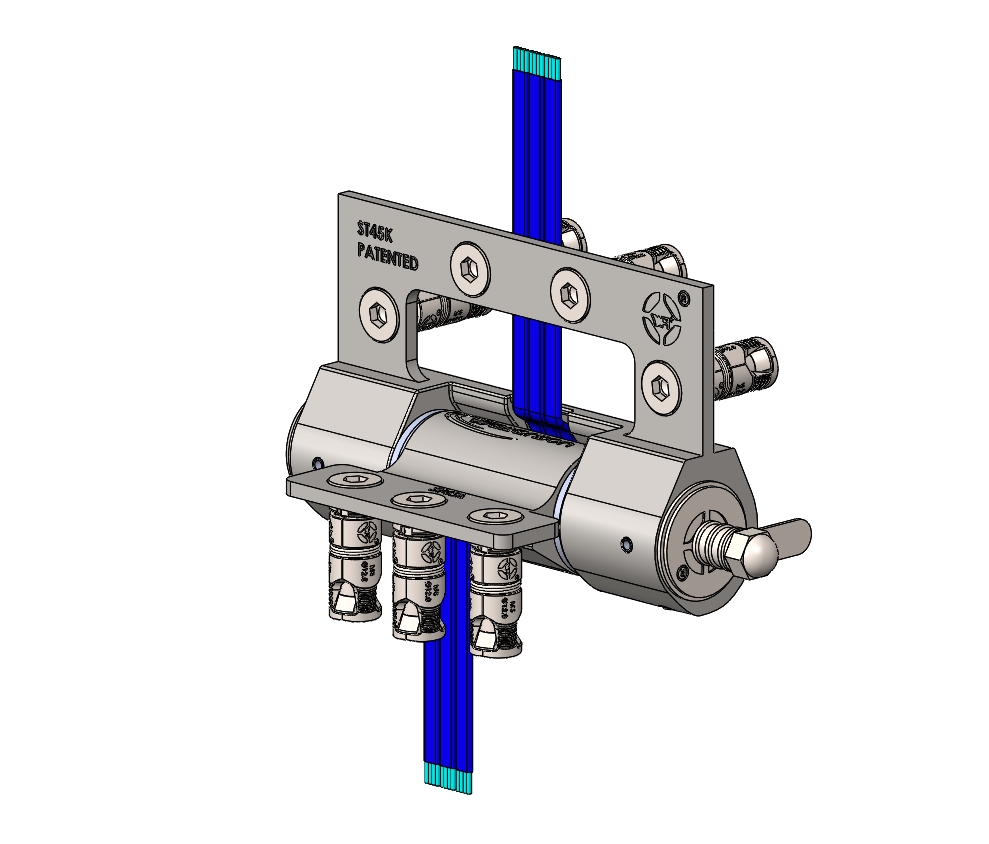

- ST45K series supports concealed electric wire function, integrating access control systems

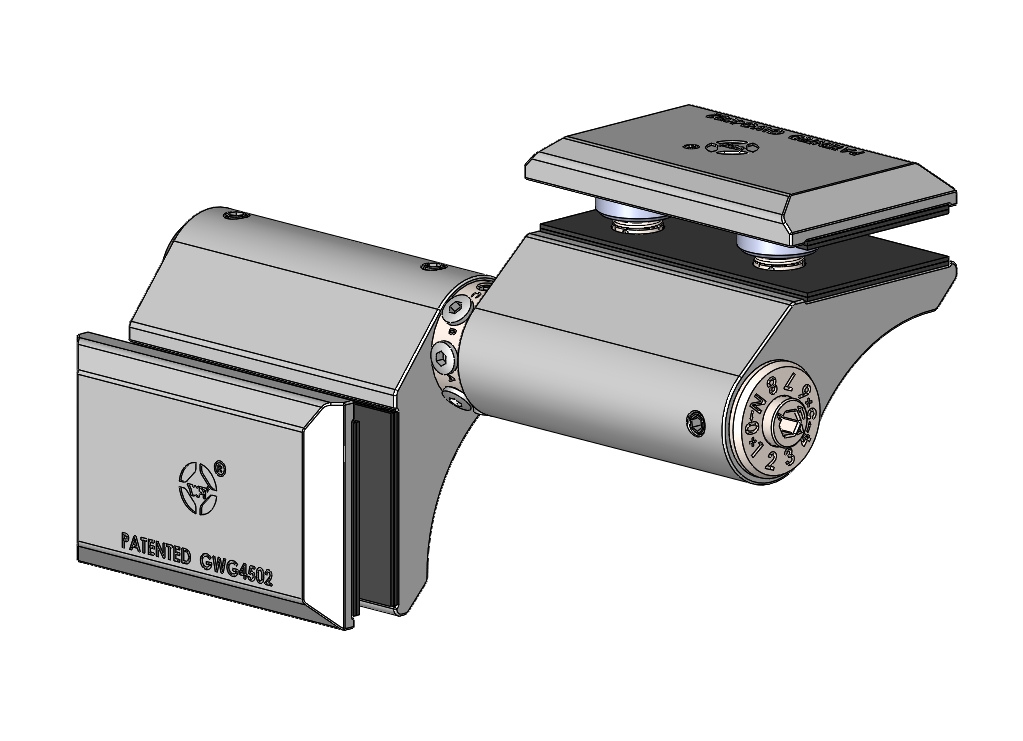

- GWG4501 specially designed for glass-to-glass applications, both aesthetic and practical
- STD4502 suitable for heavy-duty door panels with strong load-bearing capacity
- Made of durable stainless steel with excellent corrosion resistance
